Fast Scanning Calorimeter
The Fast Scanning Calorimeter (FSC) is a powerful experimental technique that measures heat capacity and enthalpy changes resulting from physical events or chemical reactions of samples at the micro/nano scale during rapid heating or cooling processes. Thanks to its wide range of scanning rates, which are several orders of magnitude higher than those of standard calorimeters, the FSC has the capability to suppress reorganization processes, generate and analyze microstructures, and provide a laboratory method to study the impact of various conditions in practice. This includes processing effects and the subsequent amorphization and partial to full crystallization of polymers, metals, and other materials at high cooling rates.
The device features a modular structure and a portable design, with a lightweight construction weighing as little as 1.5 kg, making it ideal for mobile applications and integration across multiple technologies.
| Temperature range | from -269 °C to 1000 °C |
| Scanning rate range | 1 to 107 K/s |
| Sample size | heigh: 10 nm – 50 µm Ø: 3 µm – 1 mm |
| Sensor size | 4 µm to 1 mm |
| Purge gas | Nitrogen, Helium, Argon, SF6 |
| Heat flow sensitivity | 0.12 pW |
Add-ons
- Liquid-nitrogen sensor holder for ultra-low temperatures (down to -150°C)
- Compatibility with Linkam cells
- Ultra-thin purgeable sensor holder for microscopy
- Ultra-high vacuum chamber for physical vapor deposition
- Custom solutions integrating devices such as AFM, XRD, IR, Raman, etc.
- Laser heating capabilities
Sensors

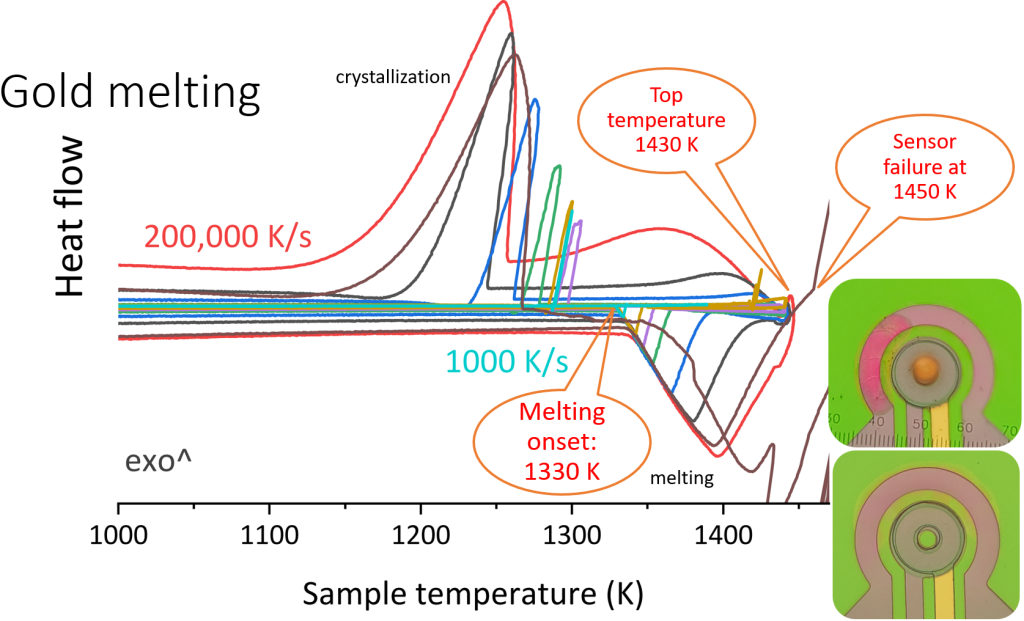

🔥 Ultra-High Temperatures at 1,300 K
📊 Thermopile as a Sample Table
Full-area temperature detection across the entire sample
True temperature homogeneity – unmatched accuracy
🔬 Opening for Transmission Experiments
10 µm opening for Raman, FTIR, and X-ray microspectrometry
📏 Variable Size for Optimal Rate Range
Ø10, 50, 100, 500 µm – covers 0.1 to 1,000,000 K/s
🛡️ Extra Toughness – Sensor Can Be Dropped from the Table
Circular membrane: no stress, no cracking, no sample kicking
Embedded in PCB frame – survives drops and rough handling
💰 Affordable – Consumable Pricing
| Temperature | up to 1400 K |
| Sensitivity | 1.7, 3.4 and 5.1 mV/K |
| Sample area | Ø500 µm up to 10,000 K/s Ø100 µm up to 50,000 K/s Ø50 µm up to 100,000 K/s Ø10 µm up to 1,000,000 K/s |
| Membrane thickness | 600 nm |
| Membrane diameter | Ø700 and Ø1000 µm |
